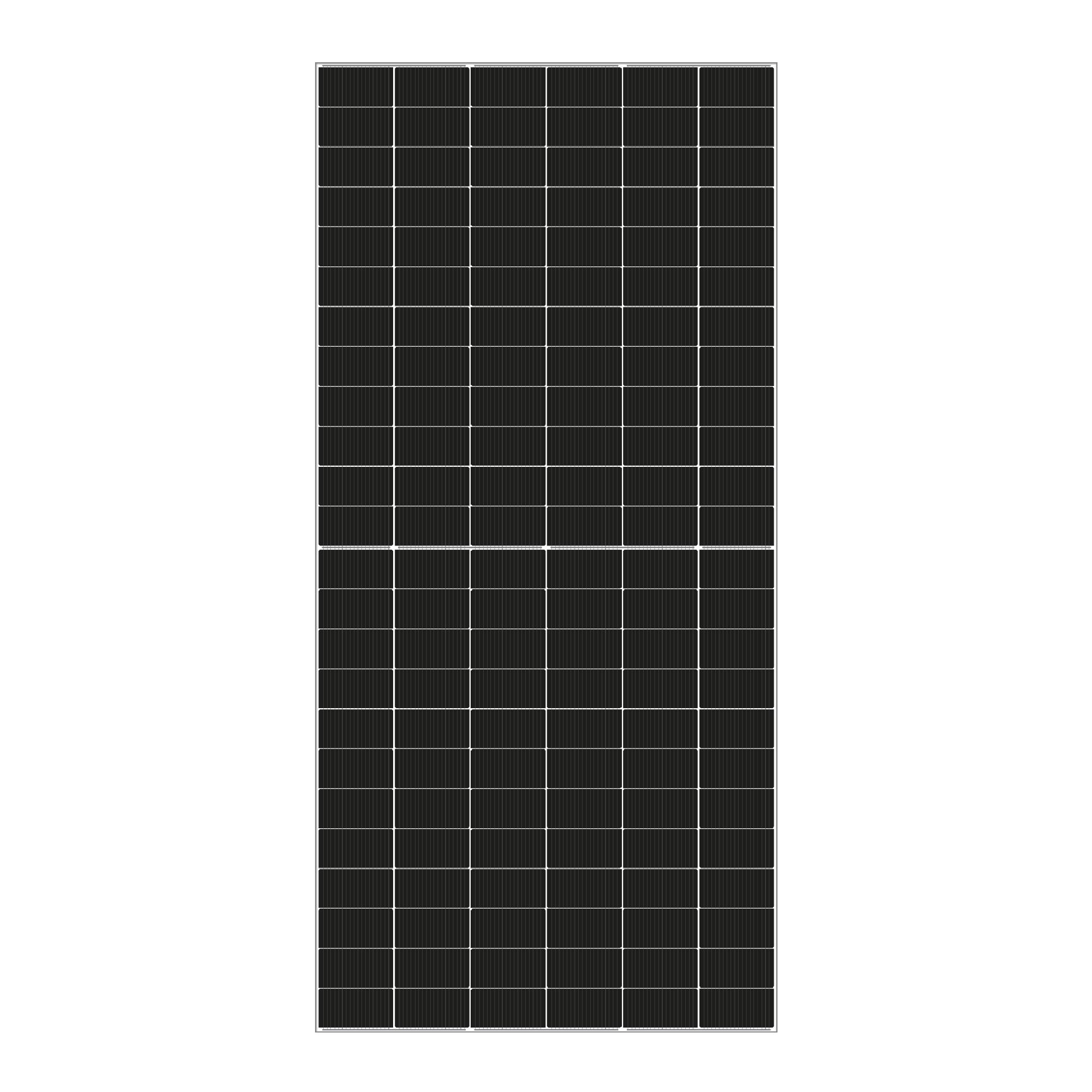

DAH Solar DHN-72R18DG 610W Solar Panel

DAH Solar DHN-72R18DG-(610W) Solar Panel DHN-72R18/DG-(610W) DAH Solar is a high-efficiency bifacial photovoltaic module based on N-type cells using TOPCon technology. The panel is designed for commercial and industrial solar power systems, where stable energy generation and long service life are essential. Thanks to the double glass design, the module offers enhanced durability and resistance to moisture, dust, and harsh environments (salt mist). Main Specifications Number of cells 144 (6×24) Cell type N-type 182×95.8 mm Dimensions 2382 × 1134 × 30 mm Weight 32.6 kg Glass 2.0 mm, anti-reflective coating Junction box IP68, 3 bypass diodes Cable 4.0 mm², 300/200 mm Connector MC4 compatible Packing 36 pcs/pallet, 720 pcs/40HQ Electrical Characteristics Parameter STC NOCT Max Power (Pmax) 610 W 459 W Voc 52.4 V 49.8 V Vmp 44.6 V 42.4 V Isc 14.72 A 11.88 A Imp 13.68 A 10.83 A Efficiency 22.58% Bifacial Gain Gain Power Efficiency 5% 641 W 23.7% 15% 701.5 W 26.0% 25% 762.5 W 28.2% Operating Conditions Max system voltage 1500V DC Operating temperature -40 ~ 85°C Fuse rating 30A NOCT 40°C ±2°C Application class Class A Temperature Coefficients Isc (α) 0.046%/°C Voc (β) -0.25%/°C Pmax (γ) -0.29%/°C Mechanical Load Snow load 5400 Pa Wind load 2400 Pa STC: 1000 W/m², 25°C, AM1.5 NOCT: 800 W/m², 20°C, wind 1 m/s
