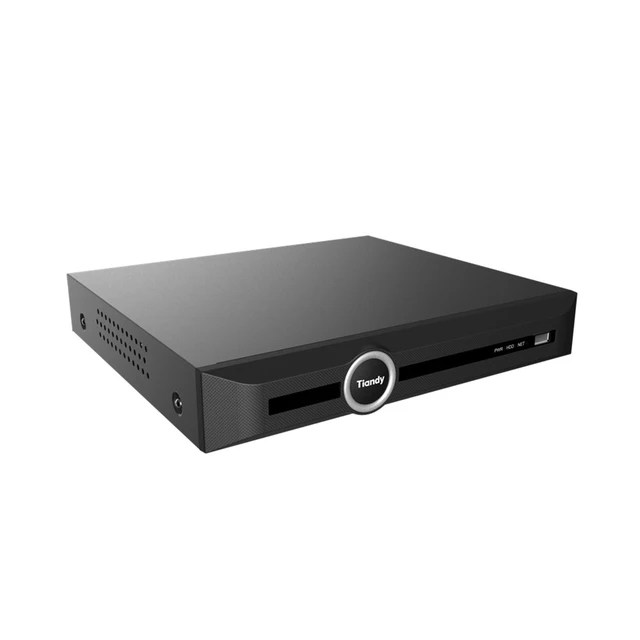

Tiandy 32 Channel NVR CCTV Camera Without POE

H.265 4HDD 32ch NVRFEATURES·Up to 32-ch IP camera accesses·Incoming/Outgoing bandwidth: 160Mbps/48Mbps·S 265, H.265, S 264, H.264 video formats·Max. decoding capability: 8MP(30fps)×2 or 1080P(30fps)×8·16-ch synchronous playback·Up to 10 TB capacity for each HDD·Simultaneous HDMI and VGA outputs·HDMI output at up to 4K resolution·2×RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port·S 265 compression effectively reduces the storage space by up to 75%·Support cloud upgradeUp to 32-ch IP camera accesses ·Incoming/Outgoing bandwidth: 160Mbps/48Mbps ·S 265, H.265, S 264, H.264 video formatsSPECIFICATIONVideo and AudioAccess Channel32Incoming Bandwidth160MbpsOutgoing Bandwidth48MbpsResolution8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIFPreview Decoding Capability8MP(30fps)×2, 6MP(30fps)×2, 5MP(30fps)×3, 4MP(30fps)×4, 3MP(30fps)×5, 1080P(30fps)×8, 720P(30fps)×16, 4CIF(30fps)×32; *: The length or width of camera resolution (each track) cannot exceed 4096 pixels.Playback Decoding Capability8MP(30fps)×2, 6MP(30fps)×2, 5MP(30fps)×3, 4MP(30fps)×4, 3MP(30fps)×5, 1080P(30fps)×8, 720P(30fps)×16Third-party Camera AccessONVIF; RTSPHDMI OutputHDMI: 1024×768(60Hz), (720P )1280×720(50Hz/60Hz), 1280×800(60Hz), 1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz), (2K)2560×1440(30Hz), (4K)3840×2160(30Hz)VGA OutputVGA: 1024×768(60Hz), (720P )1280×720(50Hz/60Hz), 1280×800(60Hz), 1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz)Multi-screen DisplaySimultaneous Output: VGA: 1/2/3/4/5/6/7/8/9/10/12/13/16/20A/20B/20C/20D/25/32/36 HDMI: 1/2/3/4/5/6/7/8/9/10/12/13/16/20A/20B/20C/20D/25/32/36Audio Input1-ch, 3.5mmAudio Output1-ch, 3.5mmTwo-Way Audio1-ch, 3.5mm, using the audio inputCompressionVideoS 265; H.265; S 264; H.264AudioG711A; G711U; AAC; ADPCM_DIV4Stream TypeVideo; Video & AudioNetworkNetwork Protocol802.1X; ARP; DDNS; DHCP; DNS; Easy DDNS; FTP; HTTP; HTTPS; ICMP; IGMP; IPv4; IPv6; Multicast; NFS; NTP; PPPoE; RTCP; RTP; RTSP; SMB/CIFS; SMTP; SNMP v1/v2/v3; SRTP; SSH; SSL; TLSv1.2, TLSv1.3; TCP/IP; UDP; Unicast; UPnPMobile Phone AccessAndroid; iOS; P2PSystem CompatibilityONVIF(Profile S/T/G); RTSP; CGI; SDKWebIE10 ; Firefox52 ; Edge89 ; Safari11 ; Chrome57 Record PlaybackMulti-channel Playback16Record ModeManual Recording; Alarm Recording; Schedule RecordingStorage MethodLocal HDDBackupUSB storage device, NetworkPlayback FunctionPlay/Pause/Stop/Slow/Speed/Backwards 30s/Forwards 30s/Full Screen/Backup (Video Editing)/Step/Digital ZoomAlarmGeneral AlarmMotion Detection; Mask Alarm; Alarm Input(IPC)Exceptions AlarmVideo Loss; IP Conflict; MAC Conflict; Network Disconnected; No Disk; Illegal Access; Disk group space alert; Disk Full; Disk R/W Error; Recording Abnormal; Abnormal found in smart of disk; Abnormal temperature of the disk; Hot-spare Exception; Voltage Alarm(IPC); RTC FailureIntelligent AnalyticsAI by CameraTripwire; Double Tripwire; Perimeter; Object Abandon; Object Missing; Loiter; Running; Parking; Heatmap; Video Abnormal; Audio Abnormal; On Duty Detection; Crowd Detection; Safety Helmet Detection; People Counting; Link to Tracking; Smoke and Fire Detection; Environmental Temperature Measurement; Face Detection; Human Body Temperature Measurement; Smart Motion; Human/Vehicle ClassificationVCA SearchHeatmap; Early-warning Search; Behavior Search; Thermographic Retrieval; Duty Search; Face SearchFace DetectionFace AttributesGender; AgeStorageHDD CapacityUp to 10 TB capacity for each HDDDisk Group4 Disk GroupExternal PortUSB1×USB2.0; 1×USB3.0HDMI1×HDMI(supports up to 4K resolution output)VGA1×VGANetwork Interface2×RJ-45, 10/100/1000 Mbps self-adaptive Ethernet portSATA4×SATA interfaceGeneralUI LanguageSimple Chinese; Traditional Chinese; English; Spanish; Korean; Italian; Turkish; Russian; Thai; French; Polish; Dutch; Hebrew; Arabic; Vietnamese; German; Ukrainian; Portuguese; AlbanianPower SupplyDC12V 5APower Consumption<10W(HDD not included, idling)NetWeight3.1kgGrossWeight5.19kgBoundary Dimensions440(L)347(W)75(H)mmPackage Dimensions540(L)175(W)455(H)mmOperating Temperature-10℃~ 55℃ ( 14℉~ 131℉)Operating Humidity10%~90%RH (non-condensing)Storage Temperature-20℃~ 60℃ (-4℉~ 140℉)Package KitNetwork Video Recorder; Screw Pack; Mouse; Power Adapter; European Standard Power Cord; 2×Ear Plate; 4×SATA Hard Disk Data Cable; 2×SATA Power Cord
